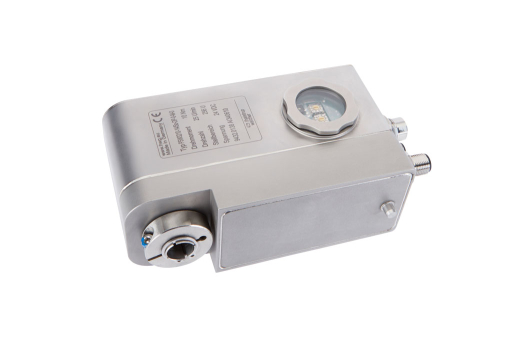

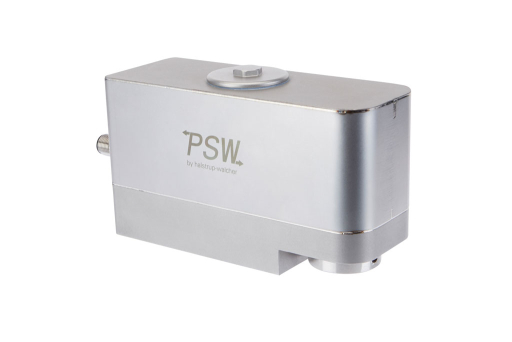

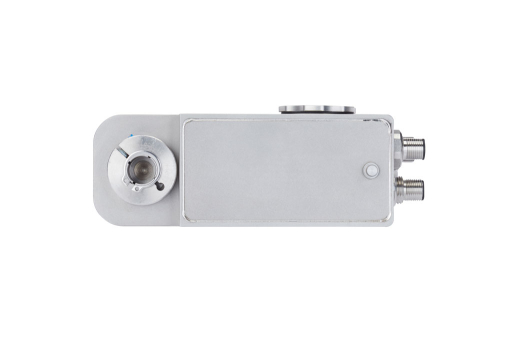

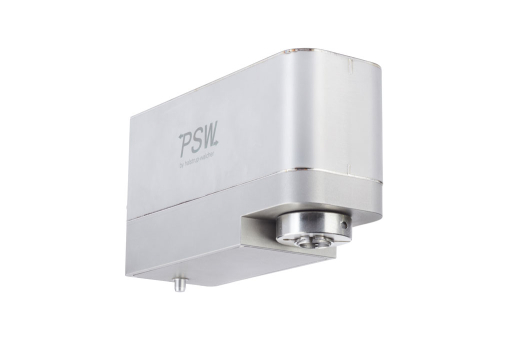

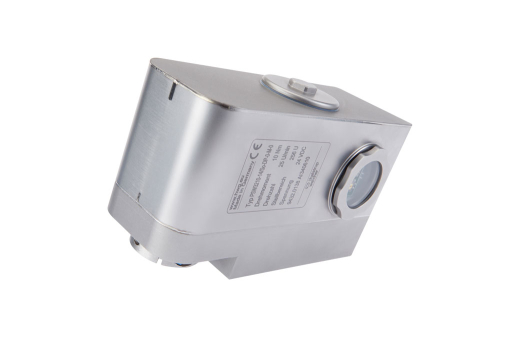

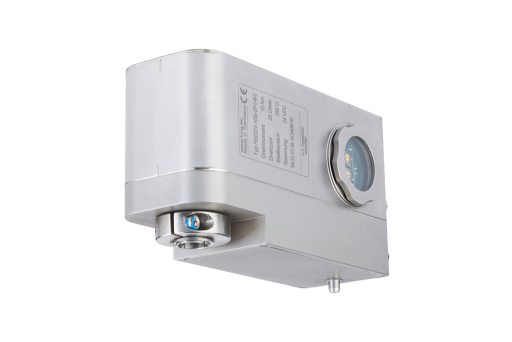

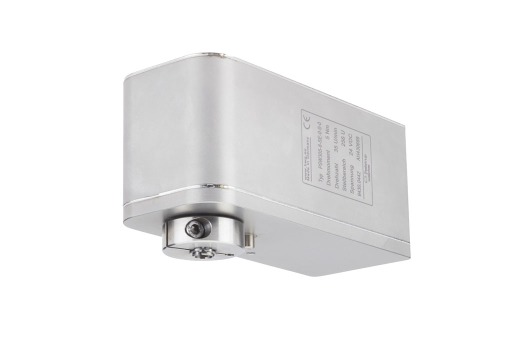

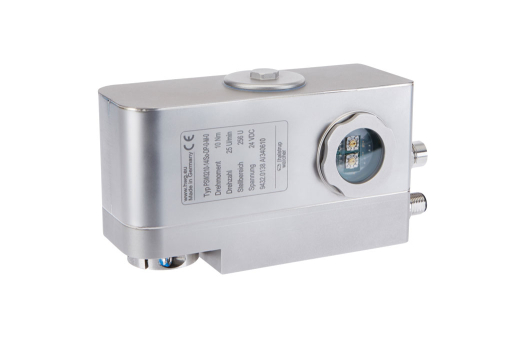

PSW 32x-14

Intelligent positioning system with protection class IP68 in stainless steel

Technical data
Documents and downloads

Intelligent positioning system with protection class IP68 in stainless steel

Special features

  • Positioning system with absolute measuring system, without battery
  • Galvanic separation of motor and control unit prevents the control unit from being affected by any EM interference in the motor
  • Easy mounting with hollow shaft possible (also available with solid circular shaft)
  • Absolute encoder eliminates the need for reference runs during system setup and installation of replacements
  • Easy address assignment directly on the device using integrated address switches (not for IO-Link)
  • Manual disconnecting lever permits manual disconnection of the gearbox
  • Regulation of the current torque prevents overloading and unnecessary run aborts
  • Strong breakaway torque enables safe start-up even after an extended standstill
  • Intelligent running behaviour. Recognises the difference between obstacles and dirt
  • Spindle offset run: Excludes inconsistencies due to lash in the spindle.
  • Condition monitoring of supply voltage, drag error (permits optimum adjustment of current position), power consumption and torque
  • Supplied with 2nd data bus connection and address switches as standard (not for IO-Link)


  • Cover cap for the connection socket can be supplied on request
  • Optionally integrated brake
  • Optionally with 14 mm solid shaft
  • NRTL+CE certification optional (standard CE)

Horizontal construction

Nominal torque / nominal rated speed
2 Nm / 125 rpm5 Nm / 50 rpm10 Nm / 24 rpm18 Nm / 14 rpm
Interface / bus communication
Positioning accuracy
0.9° (position taken directly at the output shaft)
Power supply
24 VDC
Output shaft
14 mm hollow shaft with adjustable collar14 mm solid shaft
Positioning range
250 rotations, not subject to mechanical limits
Protection class

IP 68

Technical drawing
