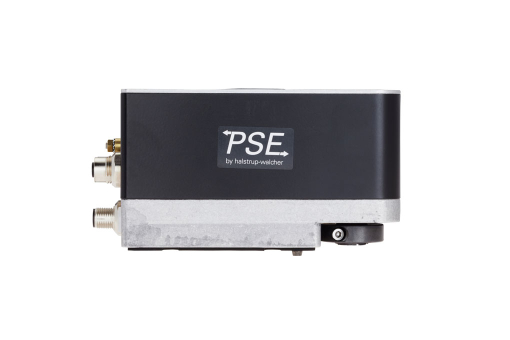

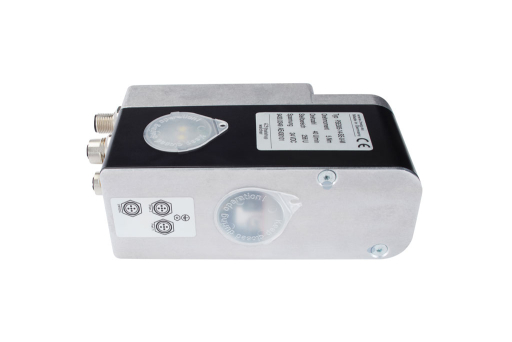

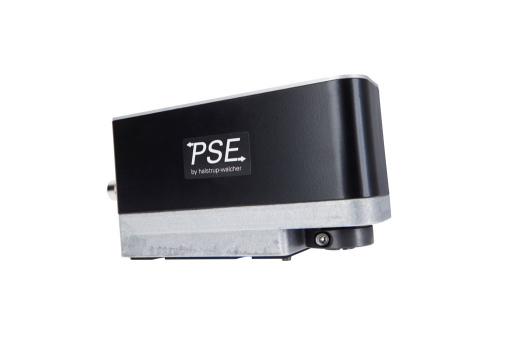

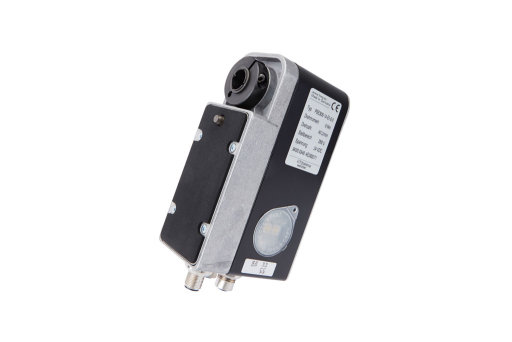

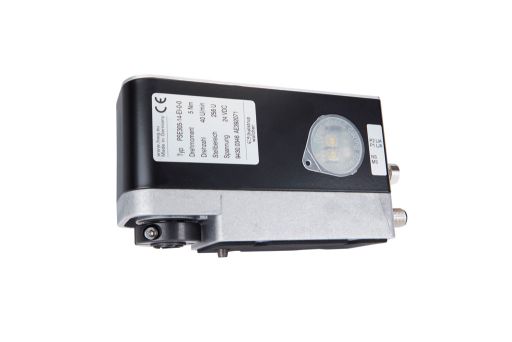

PSE 32x-14

Integrated positioning system for automatic format changeover in machines

Technical data
Documents and downloads

Positioning system with IP 54 for automatic format changeover

Special features

  • Galvanically separated supply voltages for control and performance electronics
  • Durable EC-motor
  • Extremely accurate positioning due to measurement of the position at the output side
  • Easy and low-cost mounting via hollow shaft
  • Bus interfaces simplify start-up and wiring complexity
  • Address may be set using the bus or an address switch (not for IO-Link)
  • Baud rate set via switch
  • Status messages retrievable via bus

The PSE 32x-14 positioning systems are intelligent, compact drives for the automatic positioning of auxiliary axes comprising an EC-motor, gear, controller, measuring system and CAN, PROFIBUS or Ethernet-bus interface or IO-Link. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required.

The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.

The address and baud rate switches of the positioning systems PSE simplify start-up, even without the knowledge of the control software (not for IO-Link). The drives can be mounted on a spindle using the hollow shaft without the need for an additional coupling. Two bus connections are available for looping the bus signal as standard (not for IO-Link).


  • Set-up mode or manual positioning permits the connection of jog keys (optional, not for IO-Link).
  • A holding brake (optional) holds the position even with no supply voltage.
  • NRTL+CE certification optional (standard CE)
  • Optional with STO function (with/without test pulses)

Horizontal construction

Nominal torque / nominal rated speed
2 Nm / 150 rpm5 Nm / 68 rpm10 Nm / 30 rpm18 Nm / 17 rpm
Interface / bus communication
Positioning accuracy
0.9° (position taken directly at the output shaft)
Power supply
24 VDC
Output shaft
14 mm hollow shaft with adjustable collar
Positioning range
250 rotations, not subject to mechanical limits
Protection class

IP 54, IP 65 on request

Technical drawing
